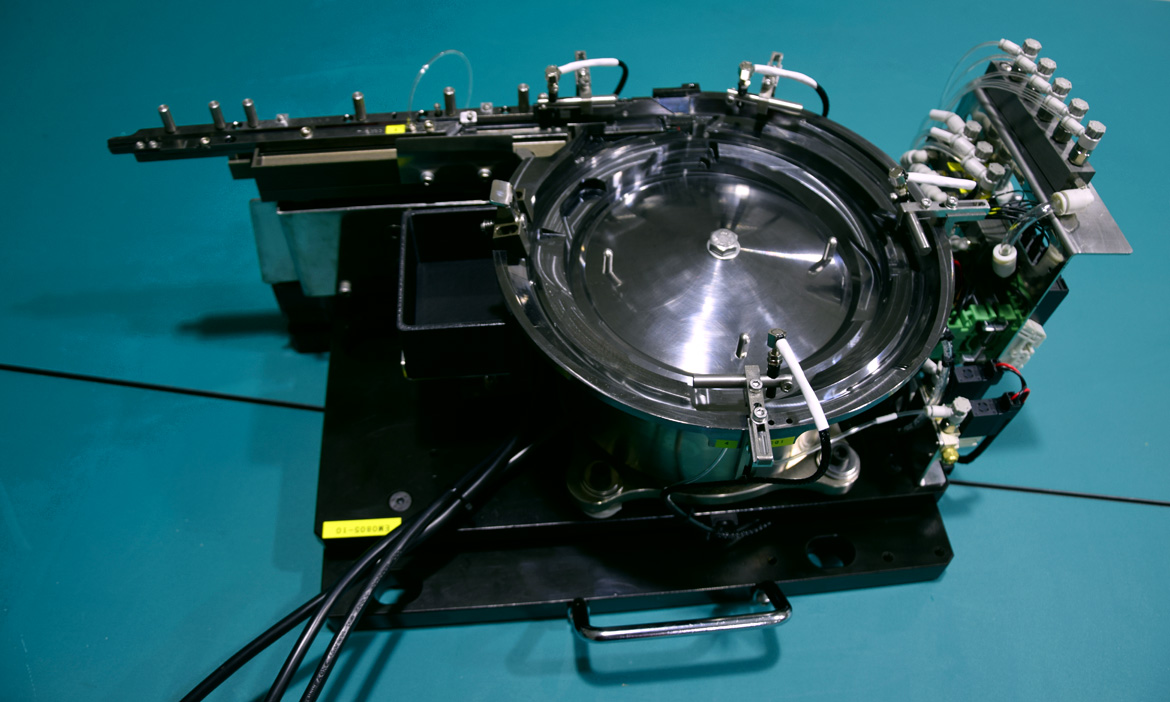

壓電式微小顆粒高速送料系列設備
Suwenzhinengjixie “壓電式微小顆粒高速送料系列設備”是自動加工與裝配企業常用的物料定向、整列、輸送設備，是自動化生產線上不可或缺的重要部分，在機械、電子、醫藥、食品、五金、陶瓷等生產領域有著廣泛應用。壓電振動送料器是振動送料器的一種新型式，比傳統電磁式振動送料器耗能低(僅為1/10以下)、噪音小、平穩性好、無電磁干擾，在輸送輕薄微小零部件或要求環境清潔的方面有著傳統送料器不可替代的優勢，具有逐步取代電磁式振動送料器的趨勢，是國內自動化生產線最具前景的物料輸送設備之一。
“壓電式微小顆粒高速送料系列設備”是常州速穩智能機械有限公司研發的壓電類精密驅動器產品之一，該產品是公司研發團隊對前期承擔的國家863項目研究成果的進一步轉化和推廣應用。該產品已經獲得國家發明專利（專利號：ZL200610017064.8、ZL202211629725.8、ZL202310739044.5等）及實用新型專利授權（專利號：ZL202022946161.3、ZL202023258383.2、ZL202123418604.2 、ZL202221902434.7、ZL202321976587.0等）。目前公司已初步完成系列生產，共有11個型號供客戶選擇，后期將逐步推出更多新型產品。
“壓電式微小顆粒高速送料系列設備”是常州速穩智能機械有限公司研發的壓電類精密驅動器產品之一，該產品是公司研發團隊對前期承擔的國家863項目研究成果的進一步轉化和推廣應用。該產品已經獲得國家發明專利（專利號：ZL200610017064.8、ZL202211629725.8、ZL202310739044.5等）及實用新型專利授權（專利號：ZL202022946161.3、ZL202023258383.2、ZL202123418604.2 、ZL202221902434.7、ZL202321976587.0等）。目前公司已初步完成系列生產，共有11個型號供客戶選擇，后期將逐步推出更多新型產品。
我們開發的壓電式微小顆粒高速輸送整列設備是相對于傳統電磁式自動送料設備提出的一種新型自動供料產品。傳統電磁式自動送料設備是利用交流線圈產生的電磁力作為產品的驅動源，這種結構注定該產品要面對振動幅度大、性能調節繁瑣、送料精度低、相似物料不能分選、輸送平穩性差、物料易被磁化等無法解決的致命缺陷。但這種電磁結構的產品承載能力強、成本較低，因此現在廣泛用來輸送特征明顯、重量較大、精度要求不高的物料，比如螺絲、螺母、軸承滾子等五金器件。而公司的產品是采用新型壓電陶瓷產生的驅動力作為驅動源，因此該產品與傳統的產品相對比，具有振動幅度小、供料精度高、物料分選精密、穩定性好、結構簡單、無電磁干擾等顯著優點。
我們的產品是一個創新的、完全擁有自主知識產權的新技術與新裝置，這不僅打破了日本對該技術領域的絕對壟斷，也將解決國內用戶面臨的產品價格高、購入周期長的困境。經過長時間測試，公司產品已基本接近國外同等型號產品。，在實際的應用中我們的產品也獲得了用戶的好評和一致認可。我們還將再接再厲不斷優化和創新，讓我的產品精益求精，日臻完美！
1.噪音低 The noise is very low
The products we developed have been tested and tested in practice. The noise generated by the products during operation is very low, only 30-40db.
2.輸送平穩 Smooth transportation
Our series of products, under the premise of ensuring the speed, the material in the process of conveying smooth sliding forward, small jump, no damage to the material.
3.分辨率高 High resolution
The vibration amplitude of the equipment is small and uniform, and the precision, light and thin parts can be accurately sorted and aligned at high speed.
4.能耗低 Low energy consumption
In the case of conveying the same material, the power consumption of the piezoelectric feeder is less than 10% of that of the electromagnetic feeder, which can save more than 90% of the power consumption.
5.速度可調范圍寬 Wide speed adjustable range
By adjusting the power controller, the material speed can be controlled freely. It is convenient and flexible, with a large controllable range, and can meet a variety of needs.
6.結構簡單、調節方便 Simple structure and convenient adjustment
Under different working requirements, the piezoelectric feeder does not need to readjust its internal structure, but only needs to adjust the working voltage and frequency of the controller.
7.物料免磁化 Magnetization free material
The piezoelectric feeder is driven by piezoelectric elements, so it does not produce or accept magnetic interference, and there is no magnetization problem to the material.
